697-M10BL44

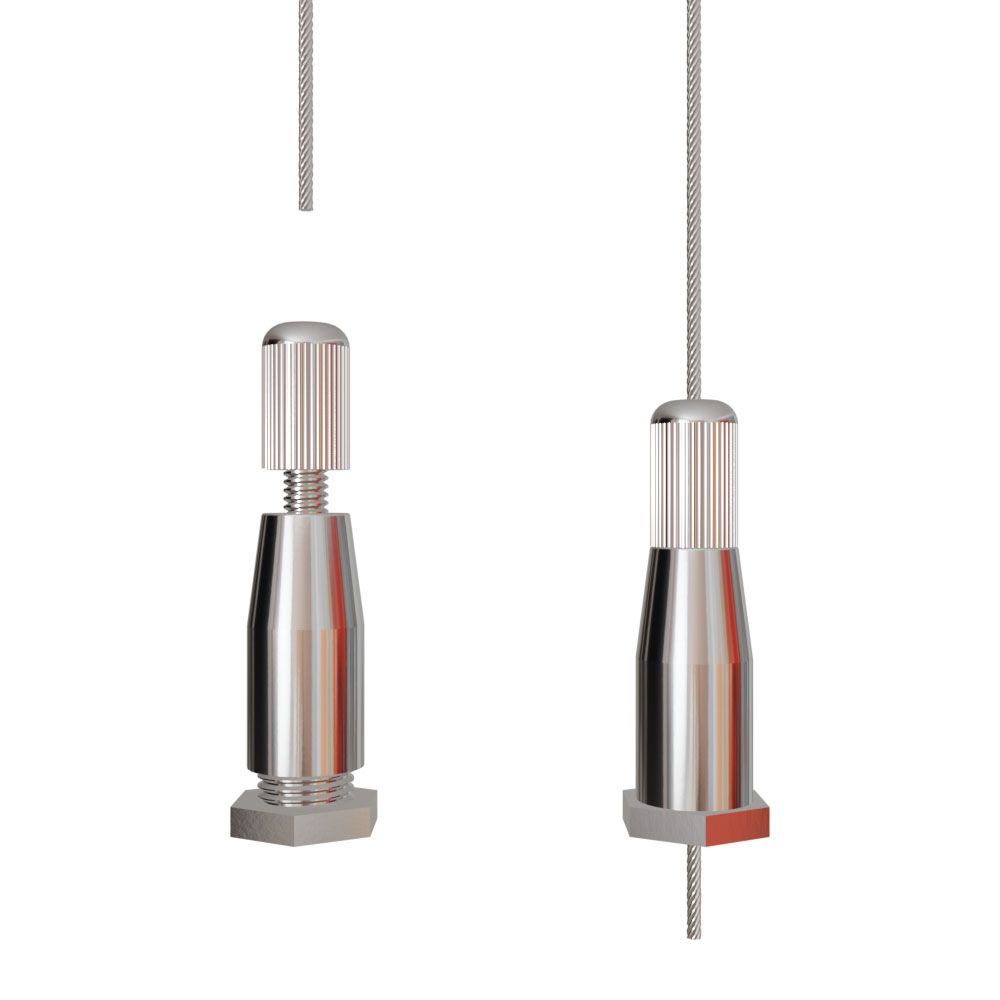

This pre-assembled adjustable gripper is designed for lighting fixture installations. It supports two mounting options: a fixed setup by disassembling the attachment to insert into a hole or track slit and reassembling the gripper for secure positioning, or a free-moving setup by mounting directly into a track slit without disassembly. It is ideal for both permanent and adjustable lighting applications in commercial, retail, and architectural settings.
| Specifications | |
|---|---|
| For wire | Ø1.5 mmØ1.8 mmØ2.0 mm |
| Wire exit | Bottom exit |
| Finish | Nickel |
| Material | Brass |
| Package size | 100 pcs |
| Wire Diameter | Working Load Limit |
|---|---|
| Ø1.5 | 18 kg |
| Ø1.8 | 24 kg |
| Ø2.0 | 28 kg |
This table shows recommended maximum load per wire and gripper combination. For safe use, see our Weight Guidelines and Safety Information.
