9-78V8MM8BD11

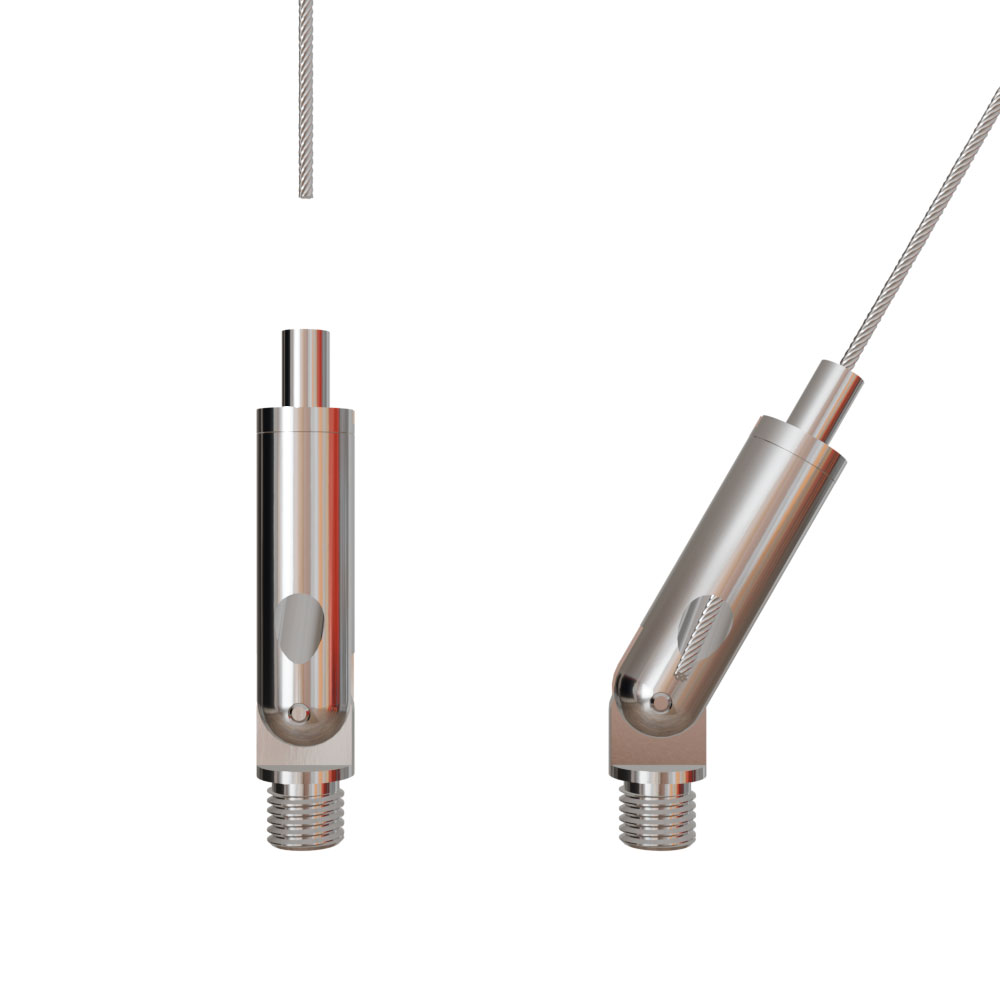

This M8 threaded gripper with a wide-body design is built for use with thicker steel wires, offering increased load capacity for demanding suspension setups. Equipped with a 180° joint, it provides excellent directional flexibility, making it ideal for angled installations such as sloped ceilings, large curved displays, circular lighting fixtures, and acoustic panels.
| Specifications | |
|---|---|
| For wire | Ø1.5 mmØ1.8 mmØ2.0 mm |
| Wire exit | Side exit |
| Thread | M8x1 |
| Joint | 180º |
| Finish | Nickel |
| Material | Brass |
| Package size | 100 pcs |
| Wire Diameter | Working Load Limit |
|---|---|
| Ø1.5 | 18 kg |
| Ø1.8 | 24 kg |
| Ø2.0 | 28 kg |
This table shows recommended maximum load per wire and gripper combination. For safe use, see our Weight Guidelines and Safety Information.
