9-32TBD10

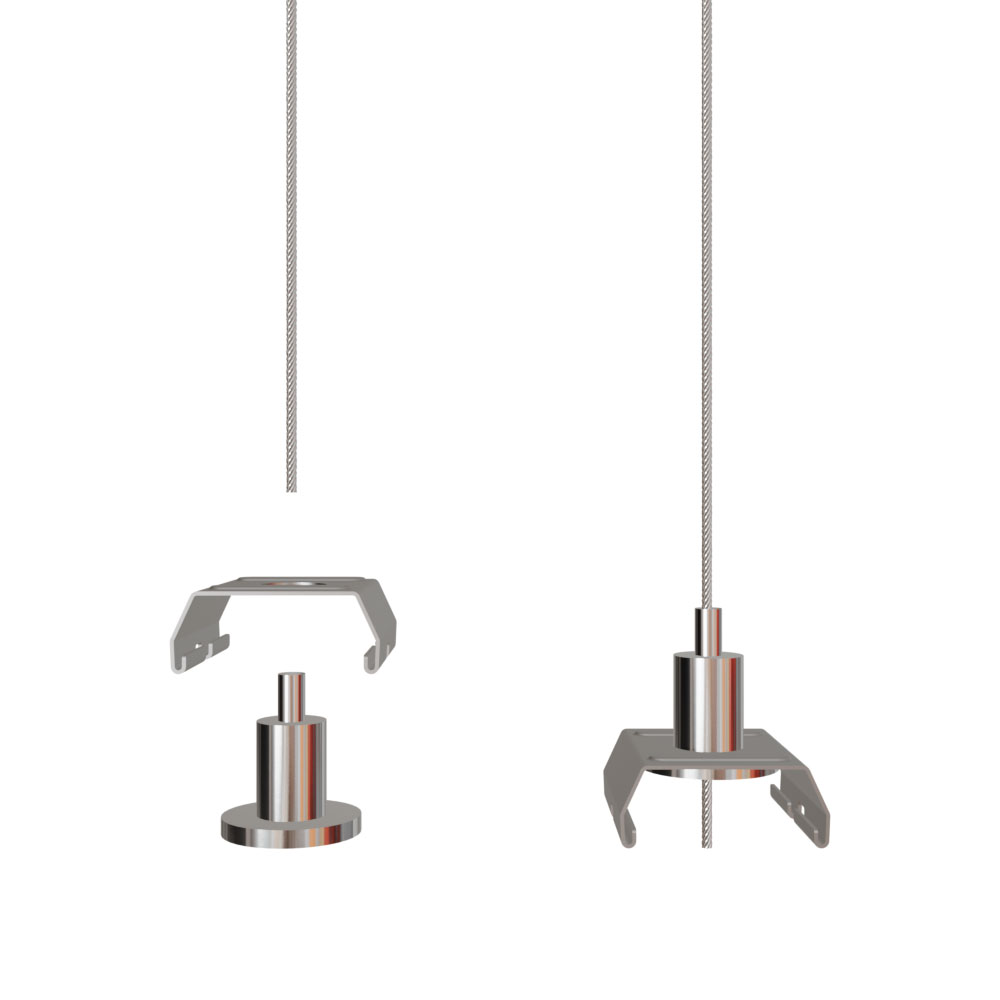

This non-threaded gripper is designed with a wide bottom body to provide stable support for products that rest directly on it. Ideal for applications such as displays, signage, and suspended panels. Perfect for tool-free assemblies where visual simplicity is essential.
| Specifications | |
|---|---|
| For wire | Ø1.0 mmØ1.2 mmØ1.5 mm |
| Wire exit | Bottom exit |
| Finish | Nickel |
| Material | Brass |
| Package size | 100 pcs |
| Wire Diameter | Working Load Limit |
|---|---|
| Ø1.0 | 8 kg |
| Ø1.2 | 12 kg |
| Ø1.5 | 18 kg |
This table shows recommended maximum load per wire and gripper combination. For safe use, see our Weight Guidelines and Safety Information.
