9-33MM10CB

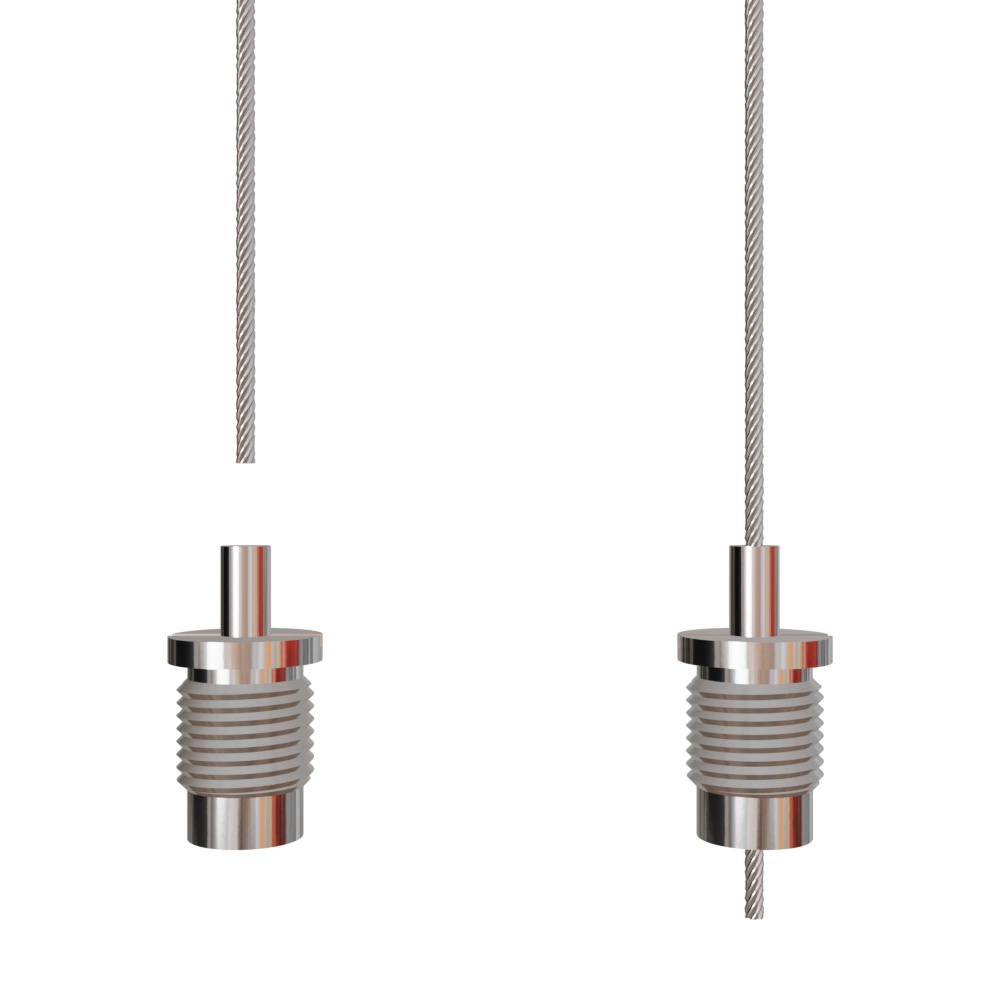

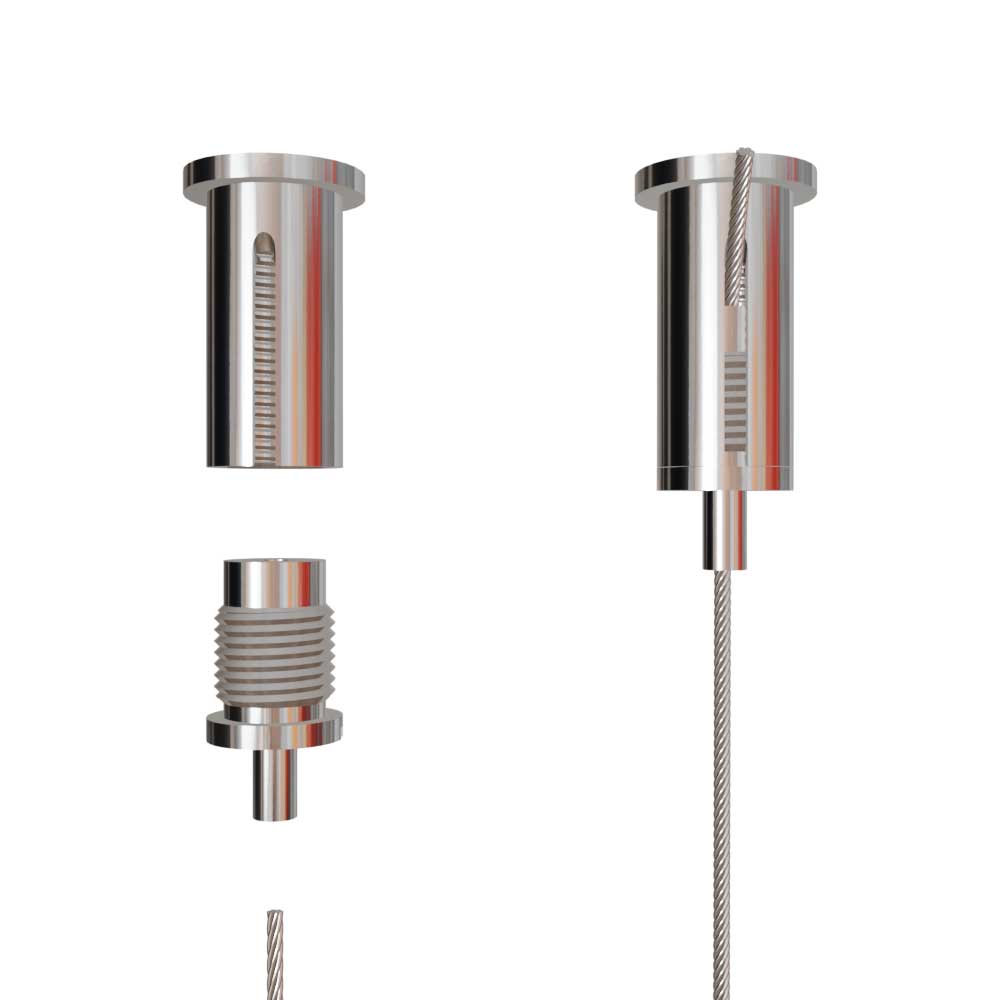

This M10 threaded gripper is designed exclusively for current-carrying wires. Featuring an insulated mechanism, it ensures electrical safety. Ideal for applications such as track lighting, powered signage, and electrified displays. The partially threaded bottom allows for quick positioning and easy assembly.
| Specifications | |
|---|---|
| For current-carrying wire | Ø1.0 mmØ1.2 mmØ1.5 mm |
| Wire exit | Bottom exit |
| Thread | M10x1 |
| Finish | Nickel |
| Material | Brass |
| Package size | 100 pcs |
| Wire Diameter | Working Load Limit |
|---|---|
| Ø1.0 | 8 kg |
| Ø1.2 | 12 kg |
| Ø1.5 | 18 kg |
This table shows recommended maximum load per wire and gripper combination. For safe use, see our Weight Guidelines and Safety Information.
