9-38M5UBK

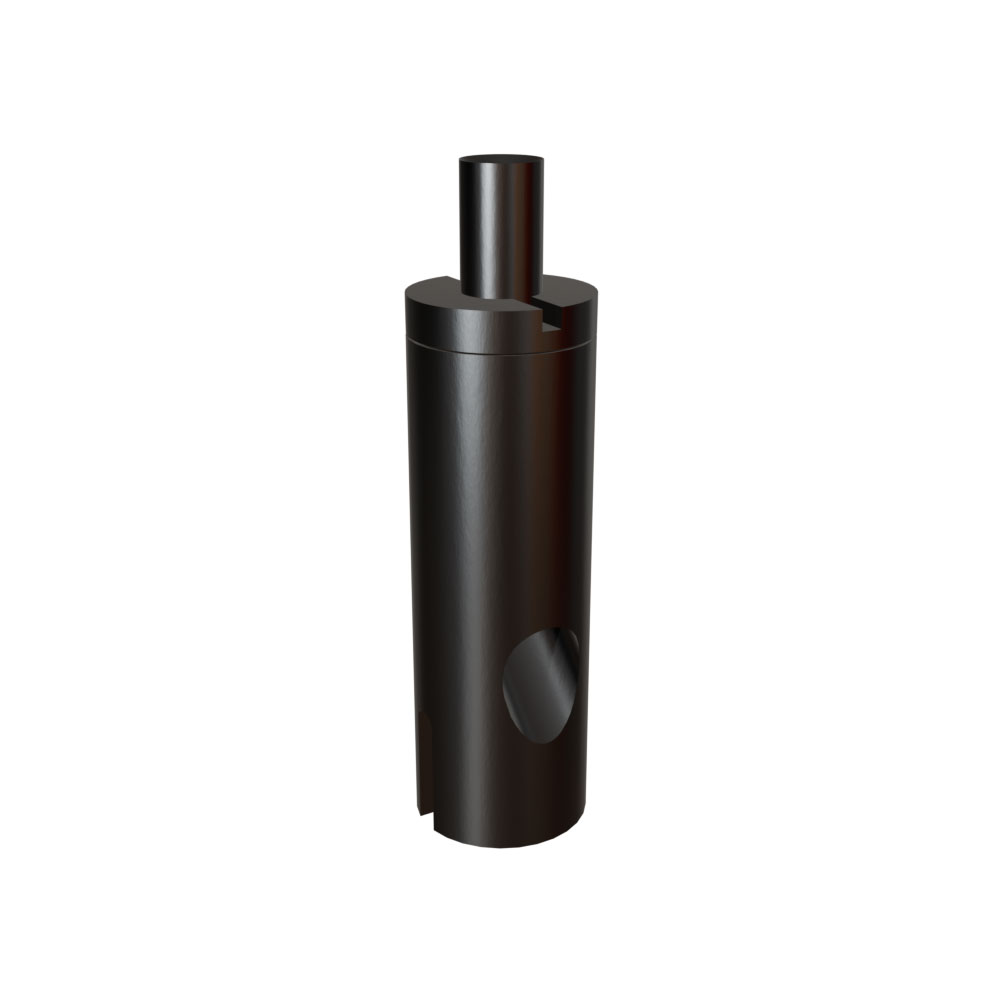

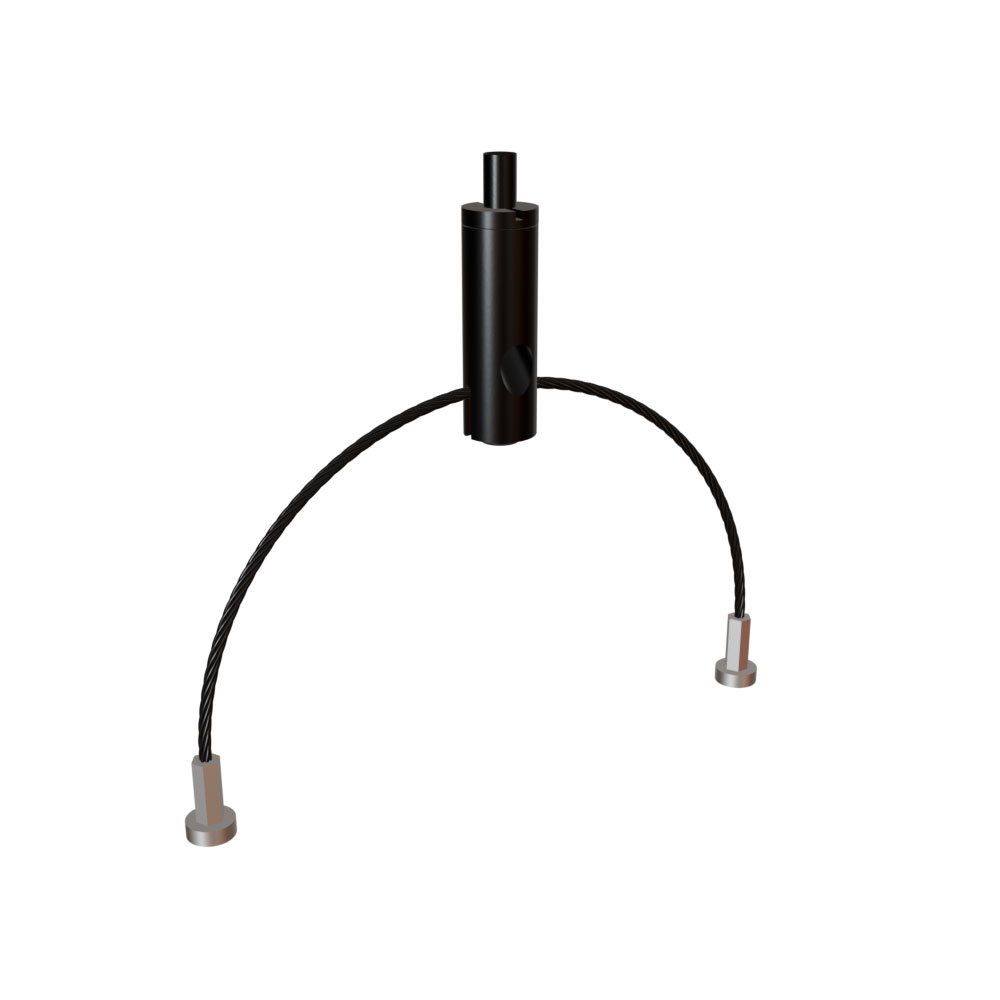

This M5 threaded gripper is designed for multi-point suspension systems using a bridge wire. The bridge wire is inserted through a bottom-entry slot and secured with a screw for a stable and reliable connection. Finished in matt black for a clean and modern appearance, it is ideal for suspending lighting, signage, and decorative fixtures where accurate alignment and multiple suspension points are required.

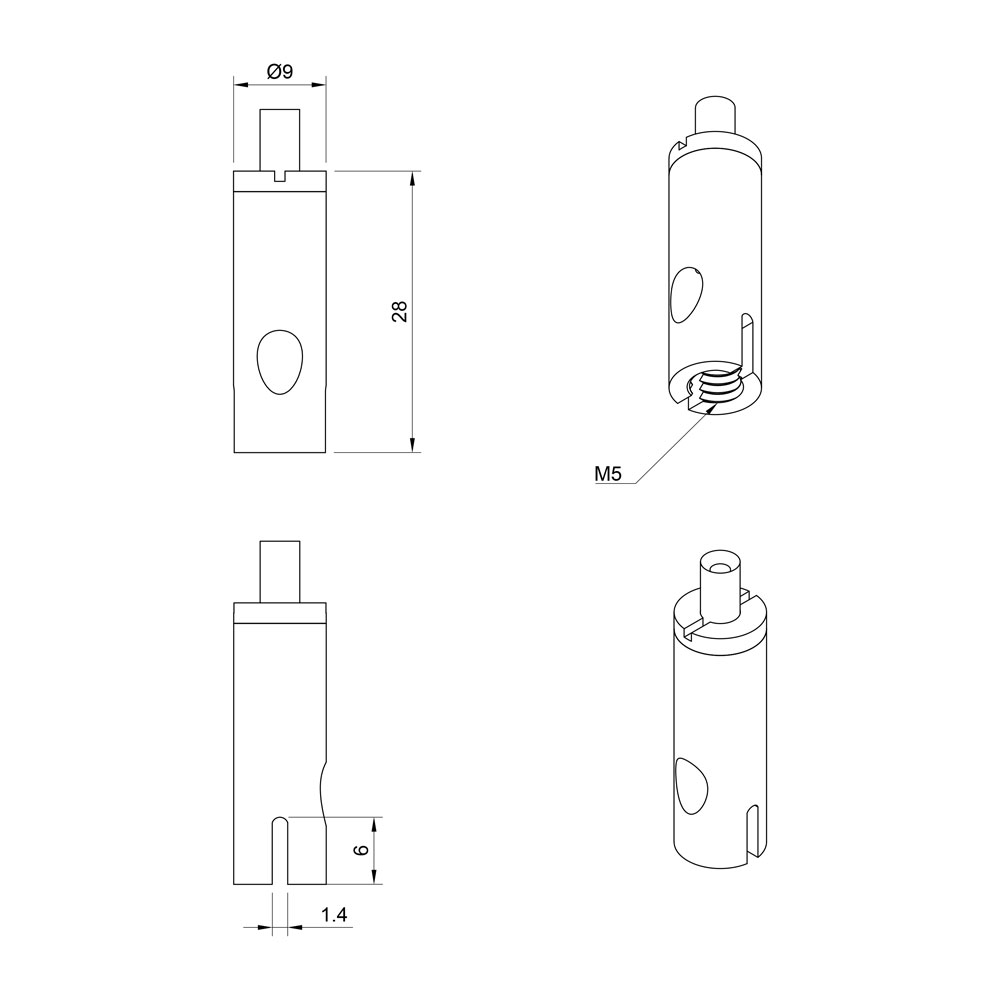

| Specifications | |
|---|---|
| For wire | Ø1.0 mmØ1.2 mm |
| Wire exit | Side exit |
| Thread | M5 |
| Including | Screw |
| Finish | Black |
| Material | Brass |
| Package size | 100 pcs |
| Wire Diameter | Working Load Limit |
|---|---|
| Ø1.0 | 8 kg |
| Ø1.2 | 12 kg |
This table shows recommended maximum load per wire and gripper combination. For safe use, see our Weight Guidelines and Safety Information.
