9-39UPDN

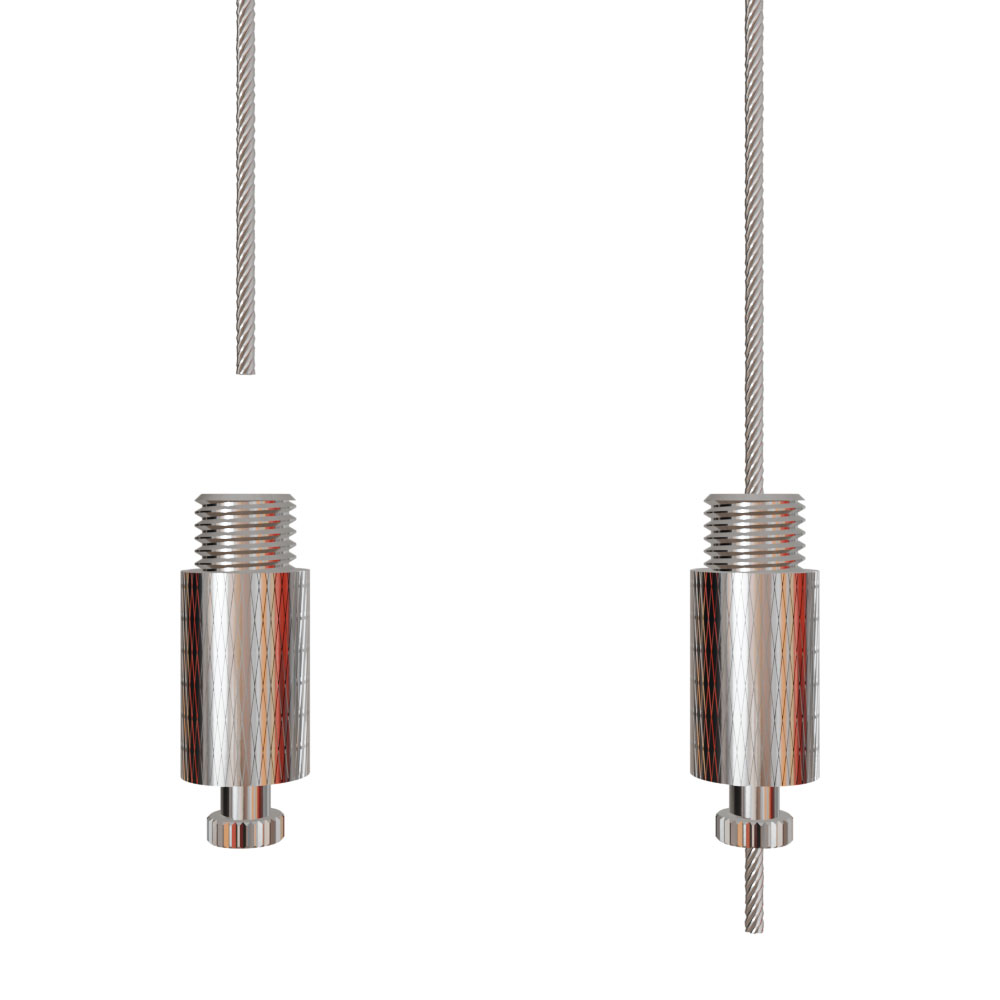

This M8 threaded gripper is designed with a reversed wire release mechanism to enhance safety and minimize the risk of accidental wire release. Instead of the standard push-to-release, this design requires a pull action to disengage the wire, providing added security in critical or high-traffic installations. With a precision-knurled body for improved grip during installation, it is ideal for suspending lighting, signage, acoustic panels, and structural elements.
| Specifications | |
|---|---|
| For wire | Ø1.0 mmØ1.2 mmØ1.5 mm |
| Wire exit | Bottom exit |
| Thread | M8x1 |
| Finish | NickelKnurls |
| Material | Brass |
| Package size | 100 pcs |
| Wire Diameter | Working Load Limit |
|---|---|
| Ø1.0 | 8 kg |
| Ø1.2 | 12 kg |
| Ø1.5 | 18 kg |
This table shows recommended maximum load per wire and gripper combination. For safe use, see our Weight Guidelines and Safety Information.
