9-61-LF

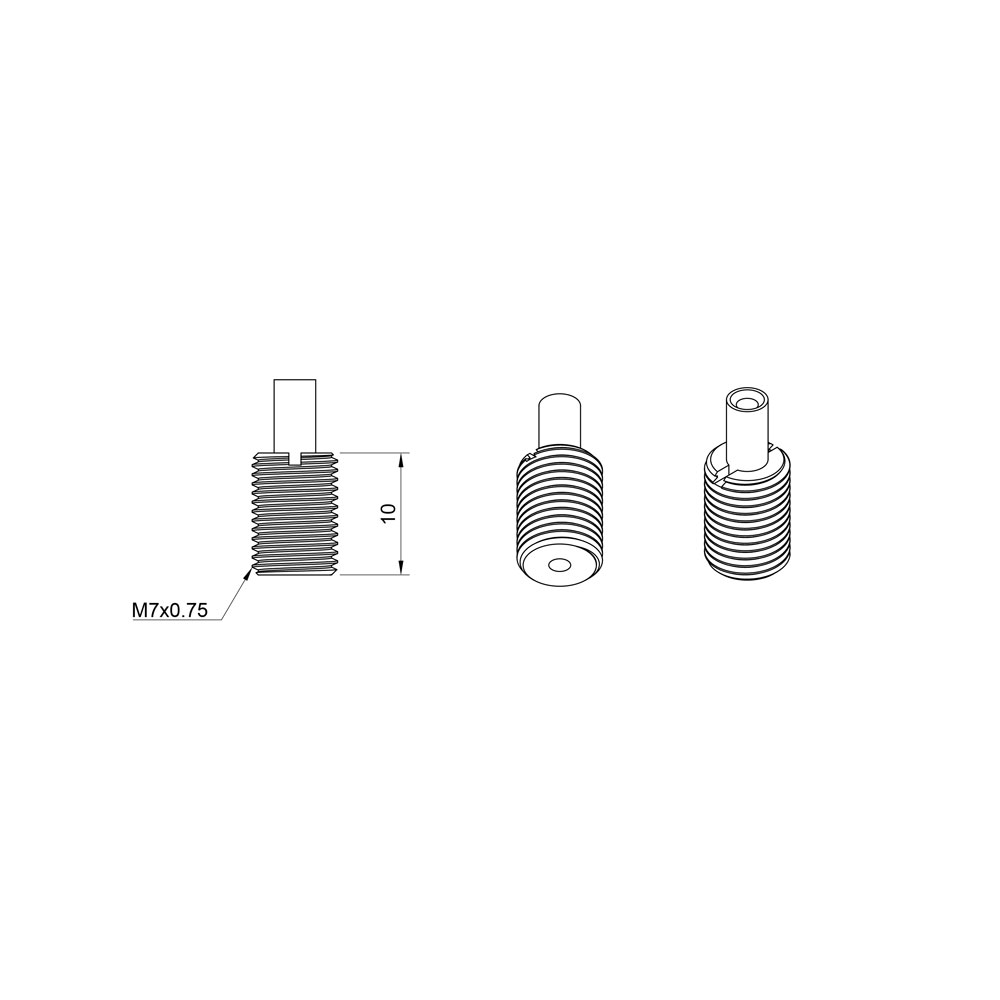

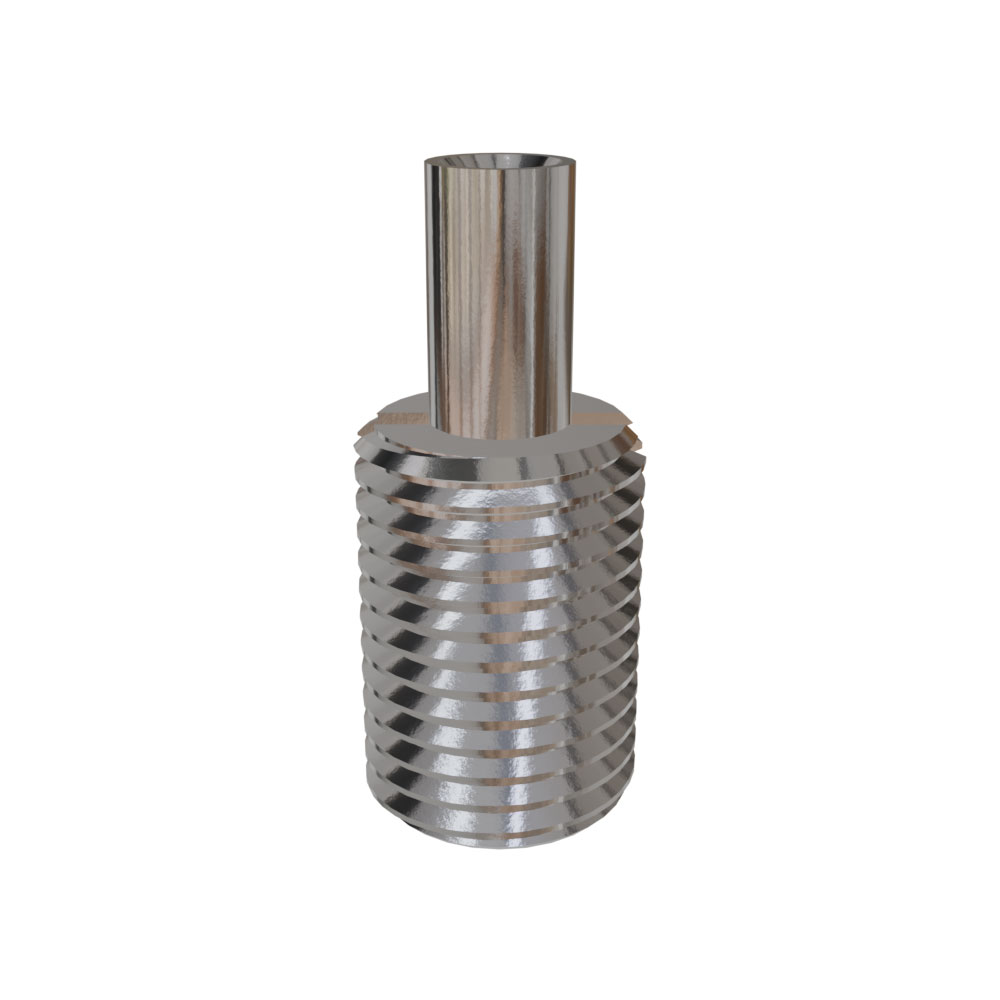

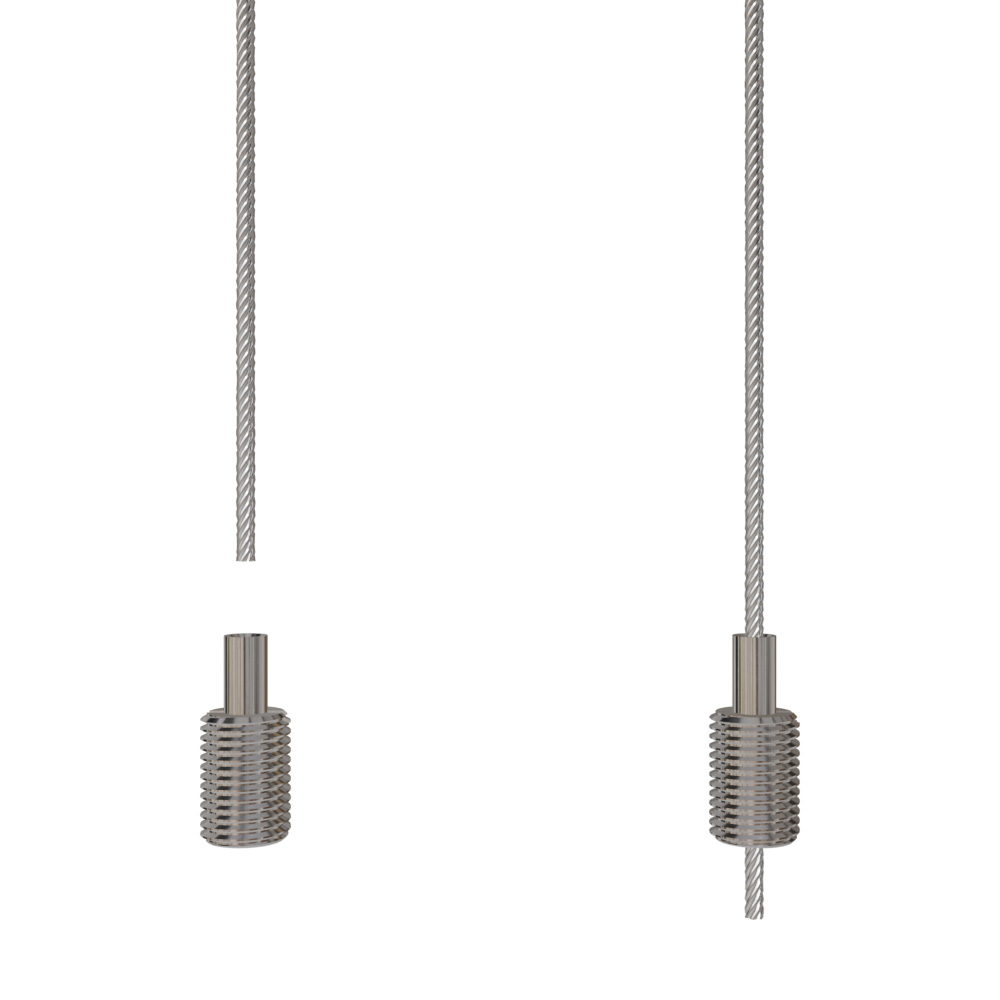

A fully threaded gripper designed for discreet integration directly into fixtures, ideal where minimal visibility matters. Features a unique M7 thread and fine 0.75 pitch for specialized mounting requirements.
Manufactured from lead-free brass for a more environmentally responsible material choice. The chrome finish avoids many of the issues associated with traditional nickel plating, including allergy concerns and increasing regulatory limitations.
| Specifications | |
|---|---|
| For wire | Ø1.0 mmØ1.2 mm |
| Wire exit | Bottom exit |
| Thread | M7x0.75 |
| Finish | Chrome |
| Material | Lead-free brass |
| Package size | 100 pcs |
| Wire Diameter | Working Load Limit |
|---|---|
| Ø1.0 | 8 kg |
| Ø1.2 | 12 kg |
This table shows recommended maximum load per wire and gripper combination. For safe use, see our Weight Guidelines and Safety Information.
