9-72UPDN

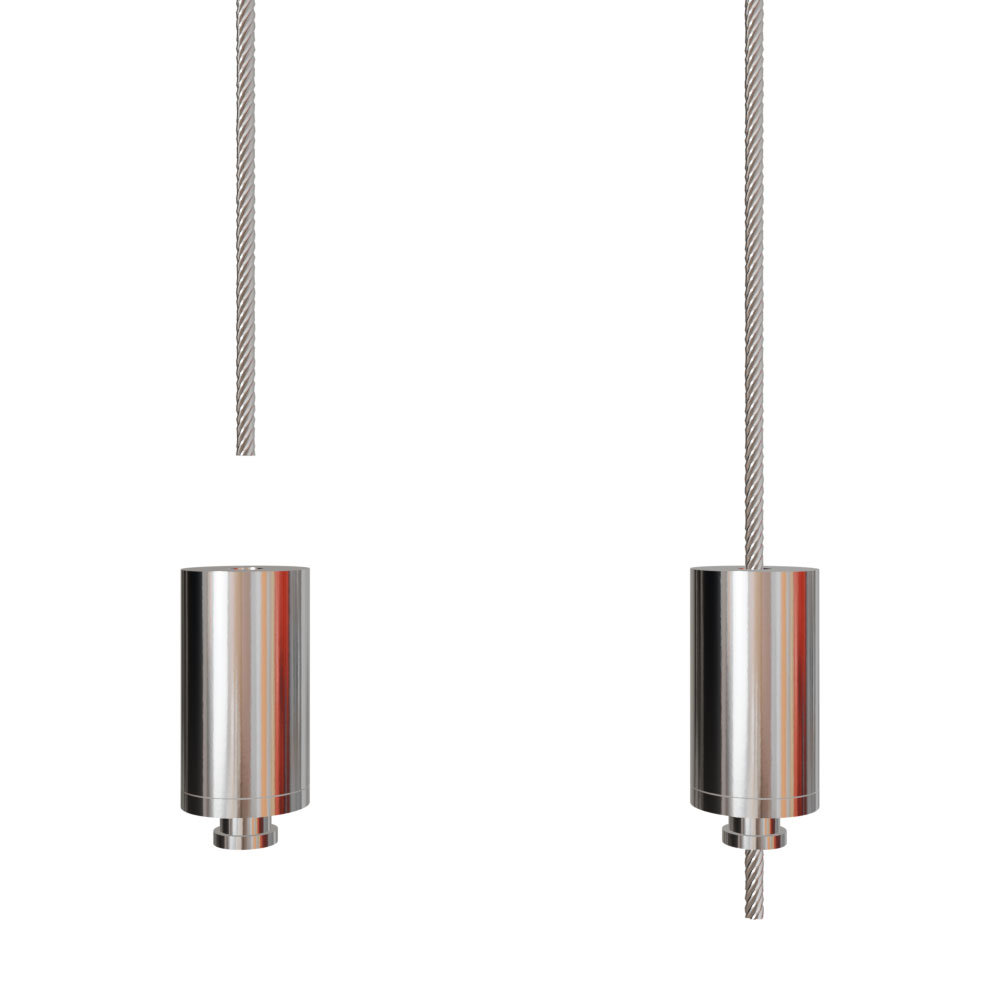

This non-threaded gripper is designed as a wire end stopper, providing a secure termination point in wire systems. It features a reversed wire release mechanism, requiring a pull action to disengage the wire, significantly reducing the risk of accidental release. With its smooth cylindrical design, it integrates into both functional and aesthetic setups.
| Specifications | |
|---|---|
| For wire | Ø1.5 mmØ1.8 mmØ2.0 mm |
| Wire exit | Bottom exit |
| Finish | Nickel |
| Material | Brass |
| Package size | 100 pcs |
| Wire Diameter | Working Load Limit |
|---|---|
| Ø1.5 | 18 kg |
| Ø1.8 | 24 kg |
| Ø2.0 | 28 kg |
This table shows recommended maximum load per wire and gripper combination. For safe use, see our Weight Guidelines and Safety Information.
