9-75MM6CKX

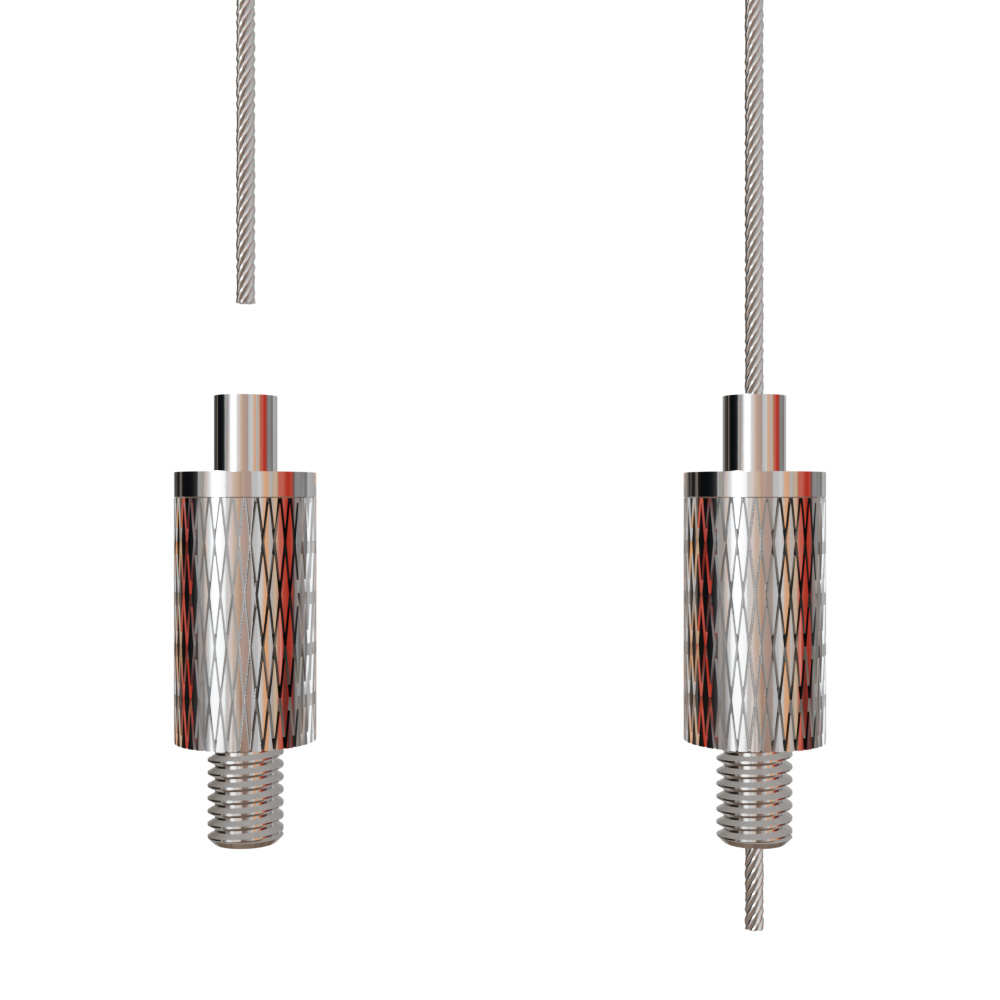

This M6 threaded gripper features a wider body specifically designed to accommodate thicker steel wires. The expanded profile not only supports heavier loads but also provides a comfortable grip during installation, aided by its knurled surface for better handling. Ideal for lighting, signage, acoustic panels, or structural elements.
| Specifications | |
|---|---|
| For wire | Ø1.5 mmØ1.8 mmØ2.0 mm |
| Wire exit | Bottom exit |
| Thread | M6 |
| Finish | NickelKnurls |
| Material | Brass |
| Package size | 100 pcs |
| Wire Diameter | Working Load Limit |
|---|---|
| Ø1.5 | 18 kg |
| Ø1.8 | 24 kg |
| Ø2.0 | 28 kg |
This table shows recommended maximum load per wire and gripper combination. For safe use, see our Weight Guidelines and Safety Information.
