9-75MM8P125

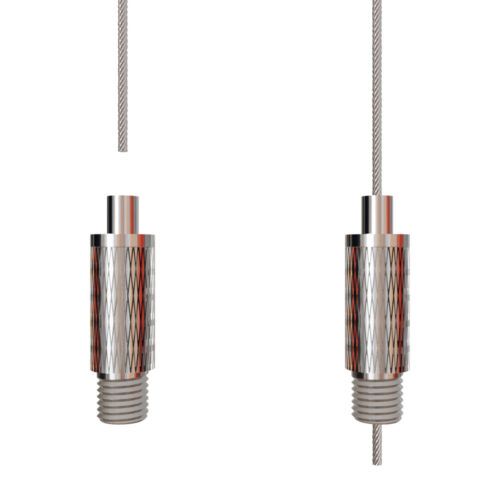

This M8 threaded gripper offering a balanced solution for a wide range of suspension applications. The knurled body provides a comfortable grip during installation. Designed with a standard 1.25 pitch, it ensures compatibility with most M8 mounting hardware. Suitable for suspending lighting, signage, acoustic panels, and other overhead fixtures where performance is key.
| Specifications | |
|---|---|
| For wire | Ø1.2 mmØ1.5 mmØ1.8 mm |
| Wire exit | Bottom exit |
| Thread | M8 |
| Finish | NickelKnurls |
| Material | Brass |
| Package size | 100 pcs |
| Wire Diameter | Working Load Limit |
|---|---|
| Ø1.2 | 12 kg |
| Ø1.5 | 18 kg |
| Ø1.8 | 24 kg |
This table shows recommended maximum load per wire and gripper combination. For safe use, see our Weight Guidelines and Safety Information.
