9-78M4

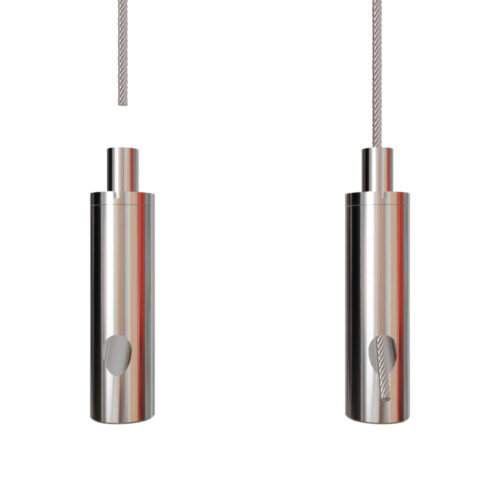

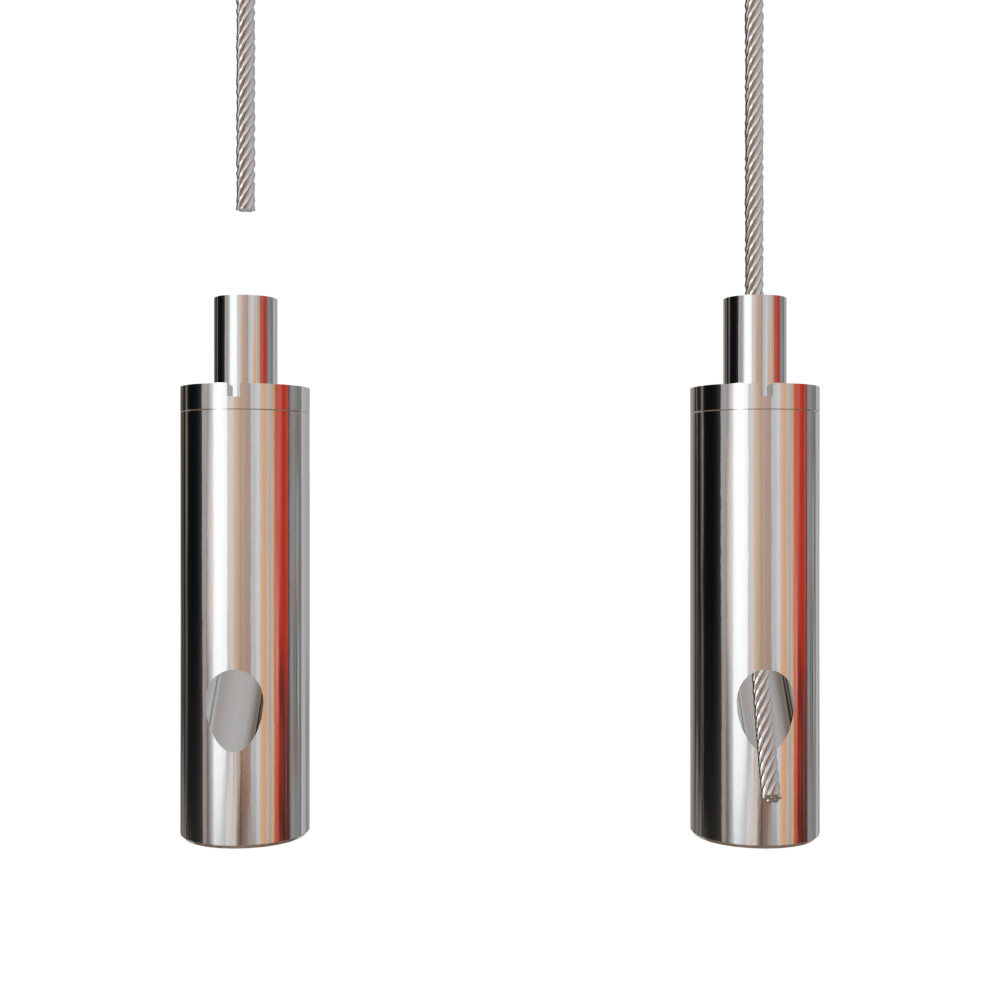

This M4 gripper with a side wire exit, is built for increased strength while maintaining the same trusted versatility and ease of installation. Its large body allows for confident handling during setup, and the side wire exit enables an efficient wire routing. Ideal for suspension tasks such as larger lighting fixtures, oversized signage, acoustic panels, and architectural elements, it delivers reliable performance in both commercial and design-focused applications.
| Specifications | |
|---|---|
| For wire | Ø1.2 mmØ1.5 mm |
| Wire exit | Side exit |
| Thread | M4 |
| Finish | Nickel |
| Material | Brass |
| Package size | 100 pcs |
| Wire Diameter | Working Load Limit |
|---|---|
| Ø1.2 | 12 kg |
| Ø1.5 | 18 kg |
This table shows recommended maximum load per wire and gripper combination. For safe use, see our Weight Guidelines and Safety Information.
