9-78V8MM13P1

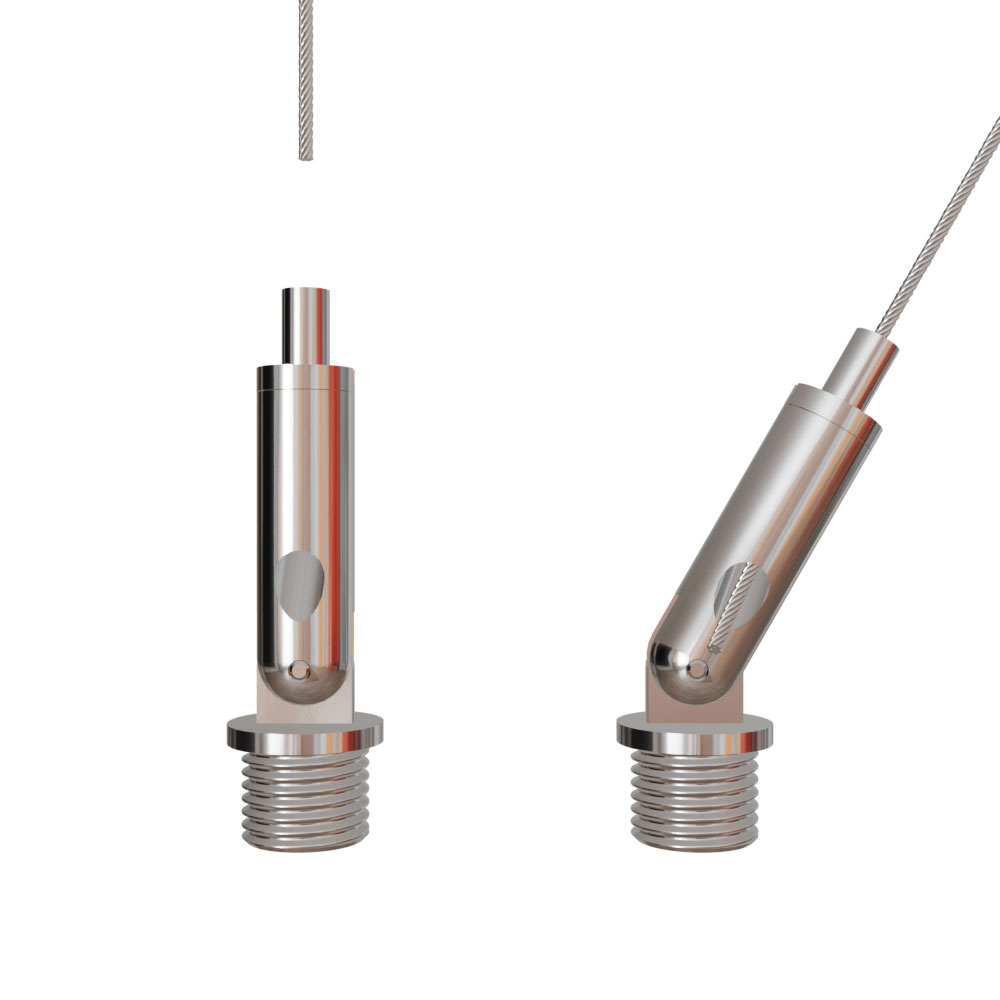

This M13 threaded gripper is equipped with a 180° joint, providing strength and directional flexibility for angled wire suspension. It allows precise alignment for lighting systems, curved architectural elements, acoustic panels, and display structures mounted on sloped or irregular surfaces.
| Specifications | |
|---|---|
| For wire | Ø1.2 mmØ1.5 mm |
| Wire exit | Side exit |
| Thread | M13x1 |
| Joint | 180º |
| Finish | Nickel |
| Material | Brass |
| Package size | 100 pcs |
| Wire Diameter | Working Load Limit |
|---|---|
| Ø1.2 | 12 kg |
| Ø1.5 | 18 kg |
This table shows recommended maximum load per wire and gripper combination. For safe use, see our Weight Guidelines and Safety Information.
