9-13H

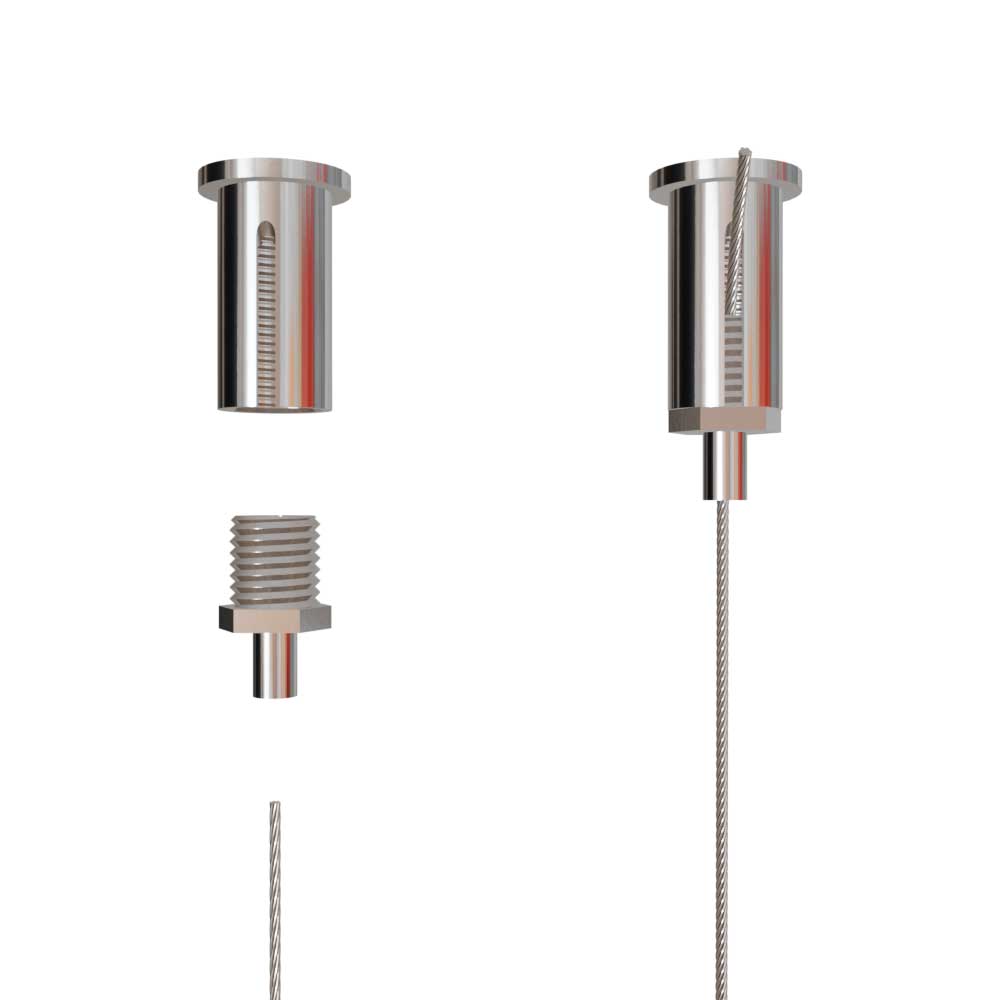

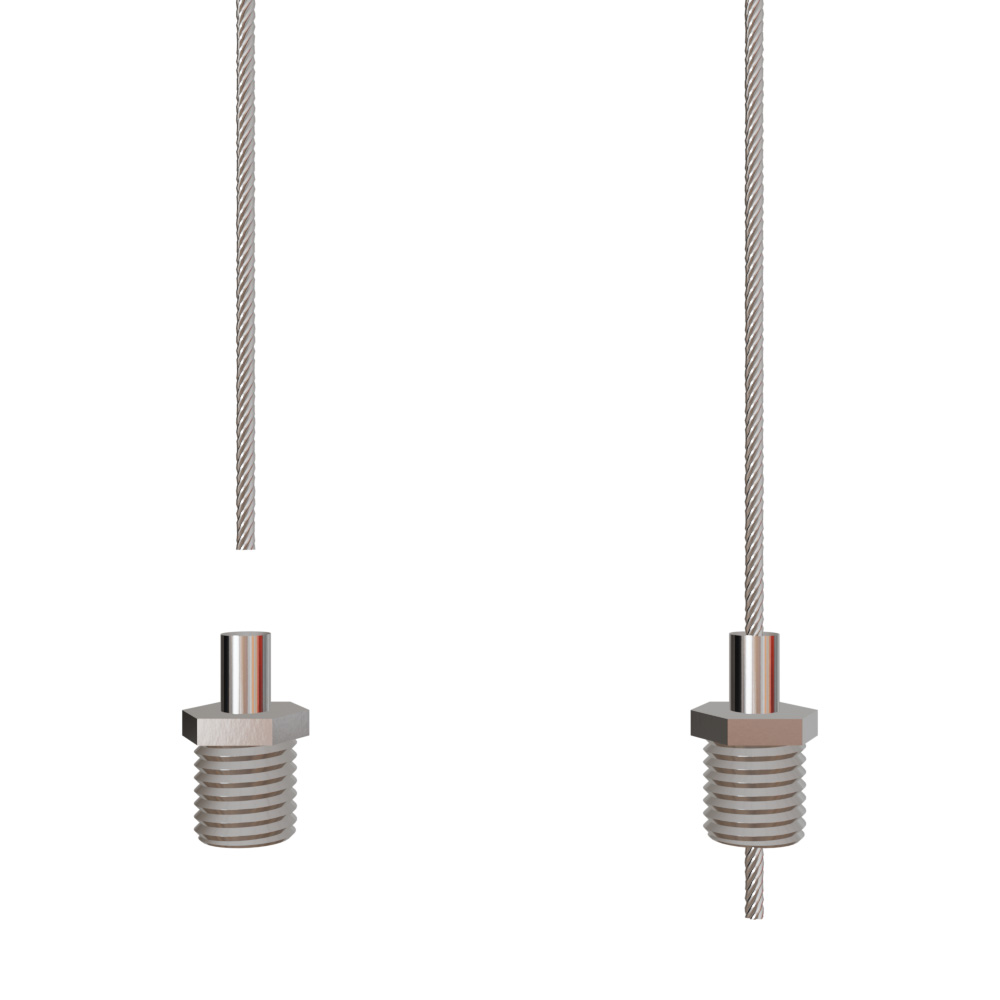

This M8 threaded gripper is designed for integration into your product while maintaining a minimal appearance. Its compact form allows for discreet mounting, making it ideal for applications where visual simplicity is key. The hexagonal top provides enhanced grip, ensuring fast and secure assembly during installation. Perfect for lighting fixtures, suspended elements, and architectural details.
| Specifications | |
|---|---|
| For wire | Ø1.0 mmØ1.2 mm |
| Wire exit | Bottom exit |
| Thread | M8x1 |
| Finish | Nickel |
| Material | Brass |
| Package size | 200 pcs |
| Wire Diameter | Working Load Limit |
|---|---|
| Ø1.0 | 8 kg |
| Ø1.2 | 12 kg |
This table shows recommended maximum load per wire and gripper combination. For safe use, see our Weight Guidelines and Safety Information.
