9-13R

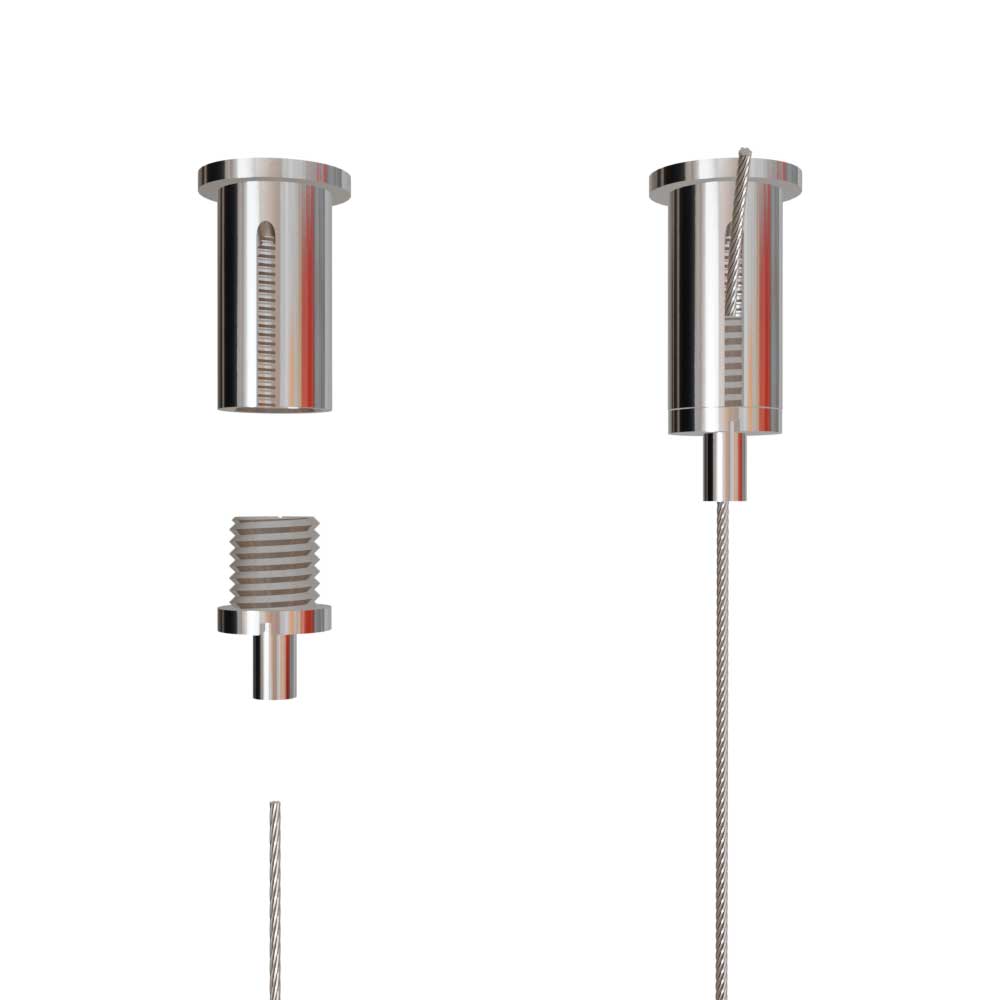

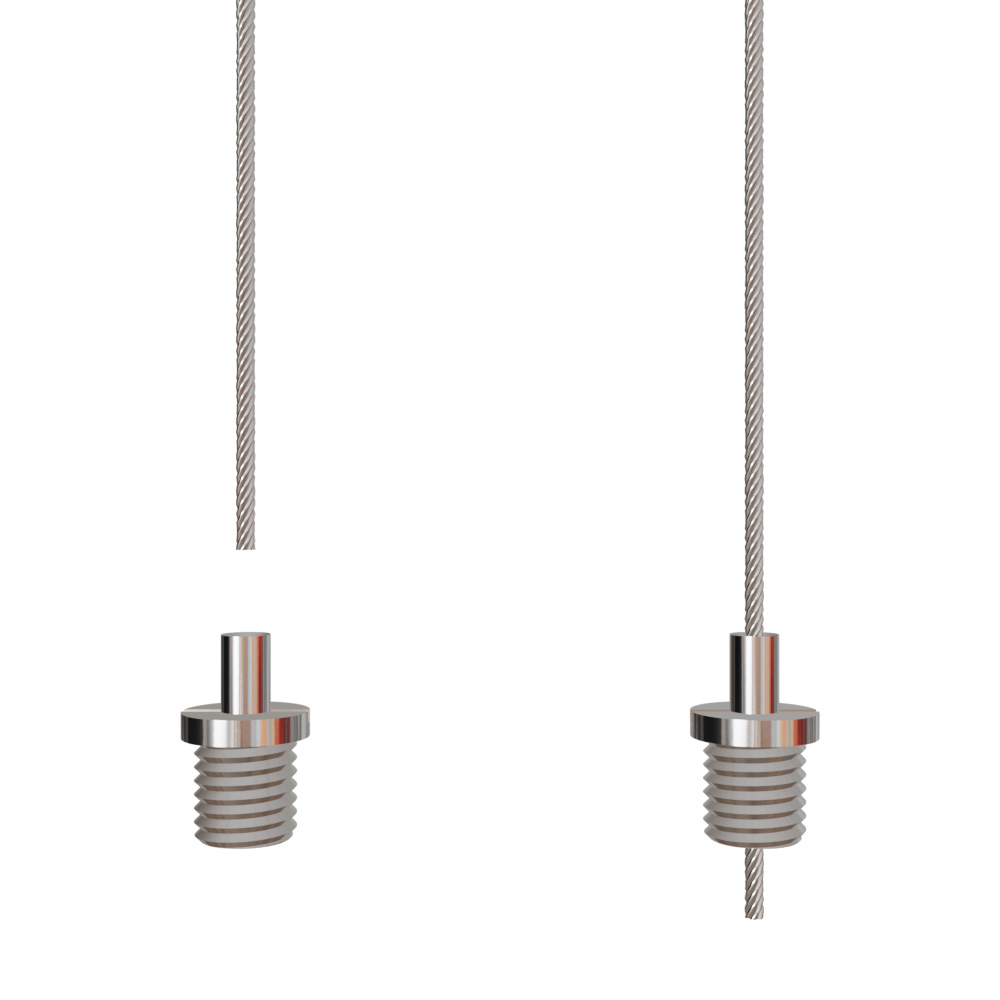

This M8 threaded gripper is designed for integration into your product. Its compact body allows for low-profile mounting, making it ideal for applications where visual simplicity is important. Despite its minimal design, it ensures a secure connection. Perfect for lighting installations, suspended displays, and refined architectural features.
| Specifications | |
|---|---|
| For wire | Ø1.0 mmØ1.2 mm |
| Wire exit | Bottom exit |
| Thread | M8x1 |
| Finish | Nickel |
| Material | Brass |
| Package size | 200 pcs |
| Wire Diameter | Working Load Limit |
|---|---|
| Ø1.0 | 8 kg |
| Ø1.2 | 12 kg |
This table shows recommended maximum load per wire and gripper combination. For safe use, see our Weight Guidelines and Safety Information.
