9-33MM10

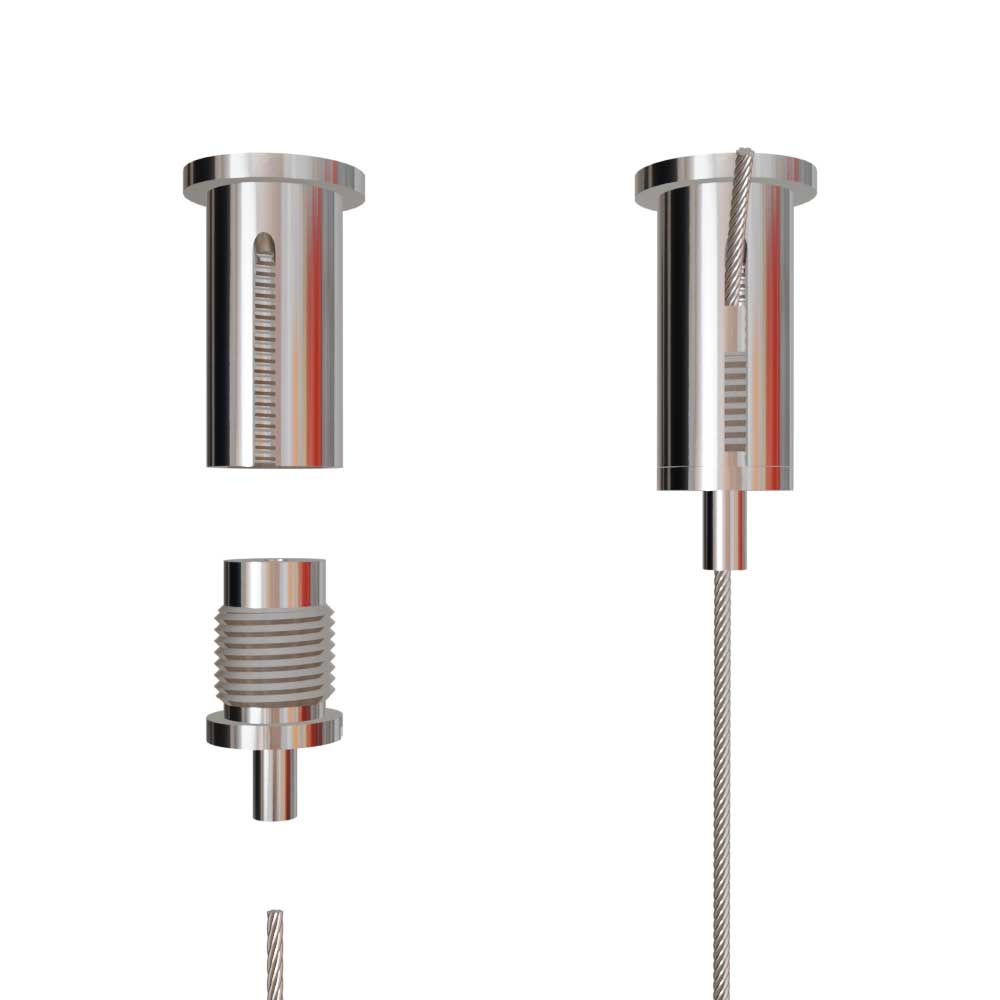

This M10 gripper is one of the most widely used solutions for dependable overhead suspension. Unlike fully threaded models, it features partial threading at the bottom, allowing for quicker alignment and faster installation without excessive turning, saving valuable time on site. Commonly secured with a nut or paired with ceiling attachments, it is ideal for suspending lighting, signage, acoustic panels, and other overhead fixtures.
| Specifications | |
|---|---|
| For wire | Ø1.0 mmØ1.2 mmØ1.5 mm |
| Wire exit | Bottom exit |
| Thread | M10x1 |
| Finish | Nickel |
| Material | Brass |
| Package size | 100 pcs |
| Wire Diameter | Working Load Limit |
|---|---|
| Ø1.0 | 8 kg |
| Ø1.2 | 12 kg |
| Ø1.5 | 18 kg |
This table shows recommended maximum load per wire and gripper combination. For safe use, see our Weight Guidelines and Safety Information.
