9-73MM13

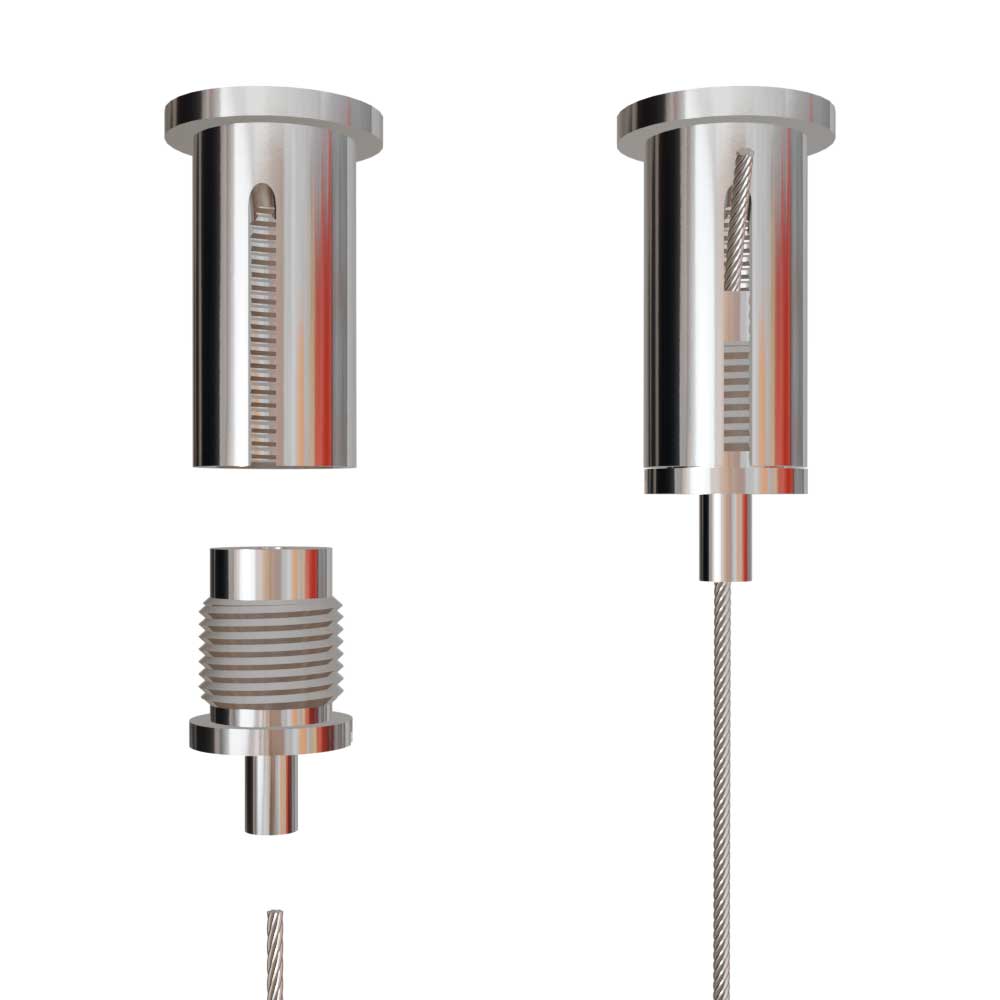

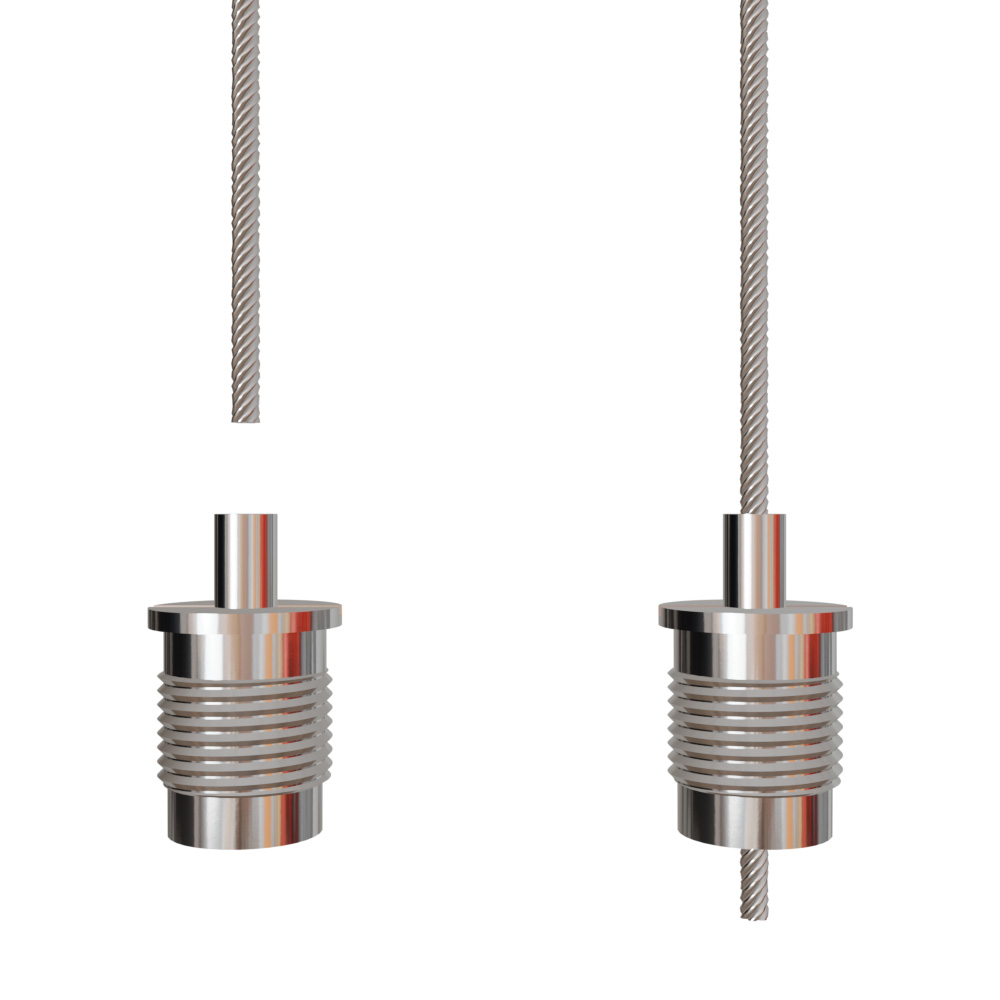

This M13 gripper is a robust solution for overhead suspension, designed to handle loads with ease. Unlike fully threaded variants, it features partial threading at the bottom, enabling quicker positioning and faster installation without unnecessary turning. Often secured with a nut, 3- and 4-point connectors, or paired with ceiling attachments. It is suited for suspending lighting fixtures, signage, acoustic elements, and other overhead installations.
| Specifications | |
|---|---|
| For wire | Ø1.5 mmØ1.8 mmØ2.0 mm |
| Wire exit | Bottom exit |
| Thread | M13x1 |
| Finish | Nickel |
| Material | Brass |
| Package size | 100 pcs |
| Wire Diameter | Working Load Limit |
|---|---|
| Ø1.5 | 18 kg |
| Ø1.8 | 24 kg |
| Ø2.0 | 28 kg |
This table shows recommended maximum load per wire and gripper combination. For safe use, see our Weight Guidelines and Safety Information.
