9-73MM13G

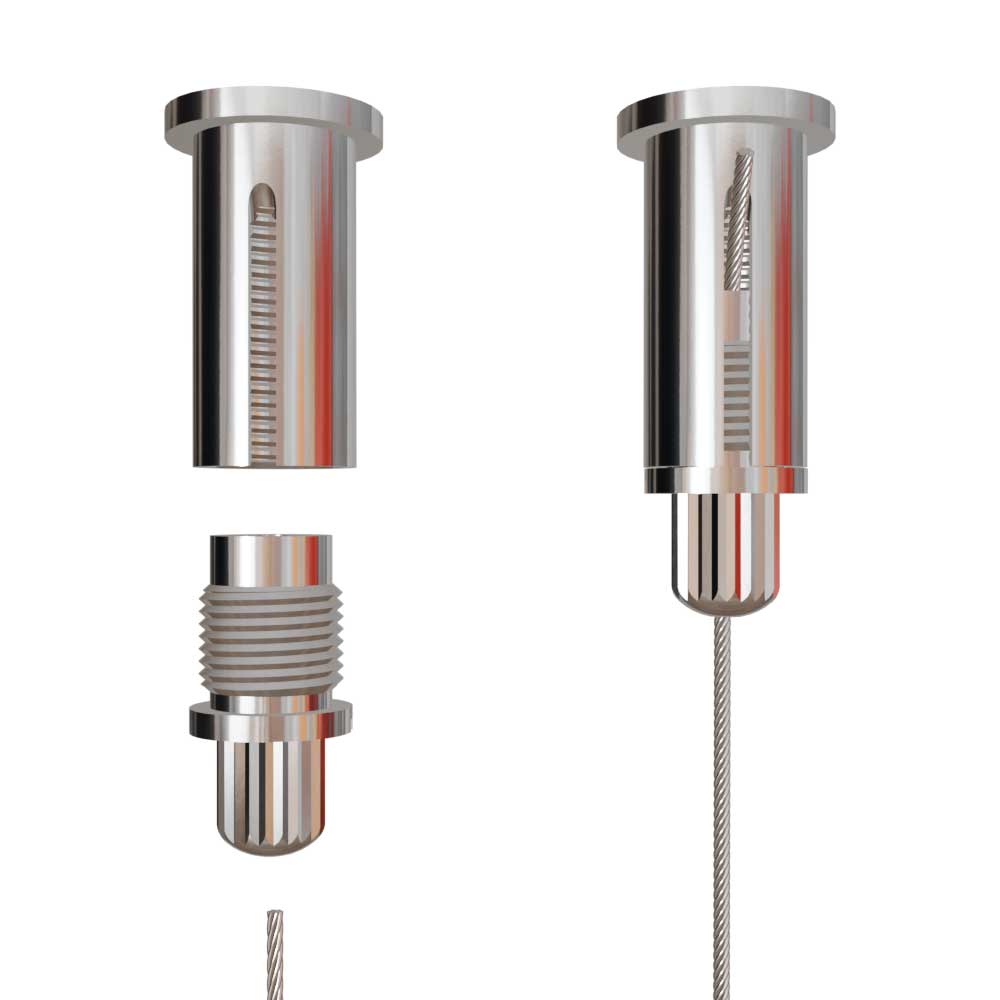

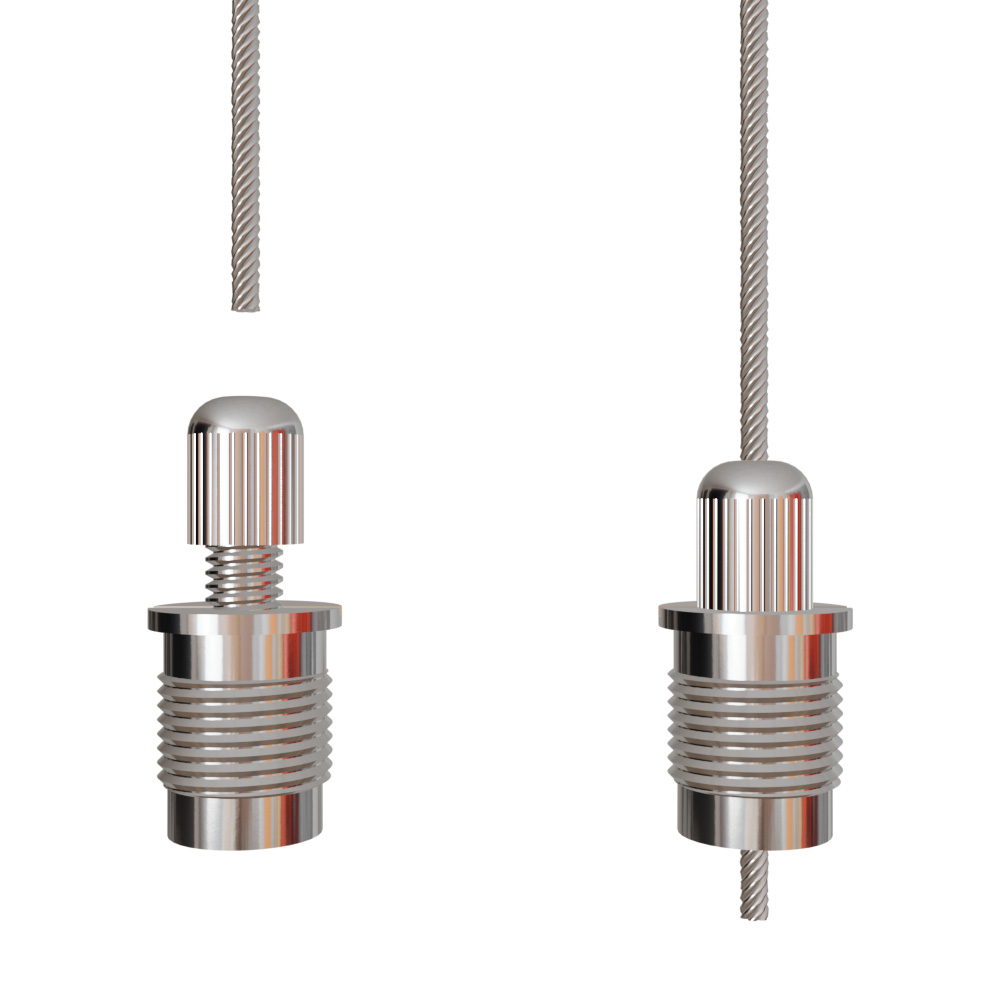

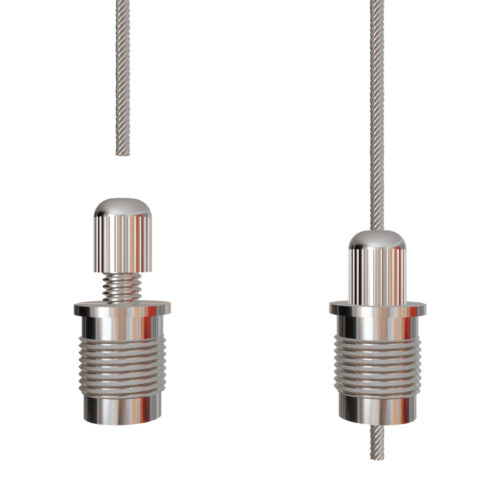

This M13 gripper is engineered for enhanced safety. It features a partial bottom thread for quick alignment and installation, reducing time on site. Equipped with a screw-on safety cap over the wire release mechanism, it significantly minimizes the risk of accidental release. It makes it ideal for installations in public, high-traffic, or safety-sensitive environments. Commonly paired with a nut, 3- and 4-point connectors, or ceiling attachment. It is perfect for securing lighting fixtures, signage, acoustic panels, and other critical overhead components.
| Specifications | |
|---|---|
| For wire | Ø1.5 mmØ1.8 mmØ2.0 mm |
| Wire exit | Bottom exit |
| Thread | M13x1 |
| Finish | Nickel |
| Material | Brass |
| Package size | 100 pcs |
| Wire Diameter | Working Load Limit |
|---|---|
| Ø1.5 | 18 kg |
| Ø1.8 | 24 kg |
| Ø2.0 | 28 kg |
This table shows recommended maximum load per wire and gripper combination. For safe use, see our Weight Guidelines and Safety Information.
