9-78M5

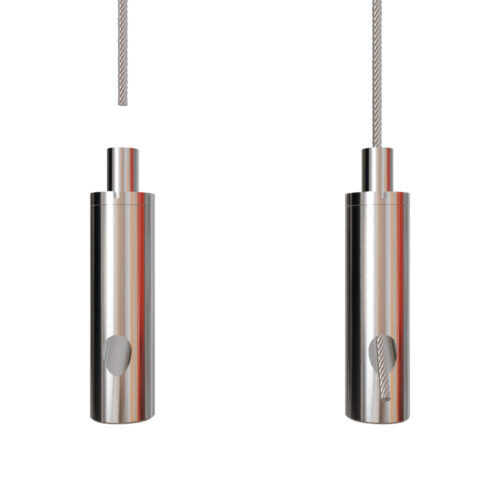

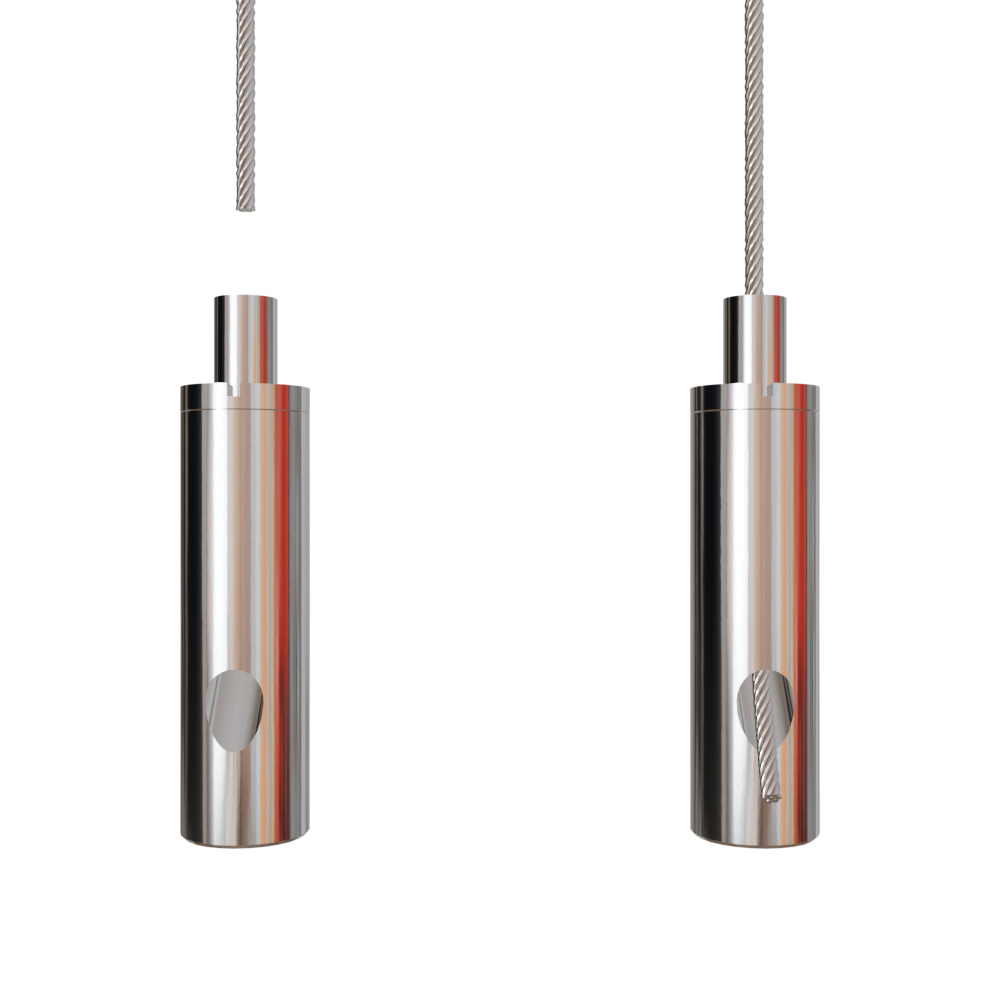

This M5 gripper with a side wire exit offers a step up in thread strength while maintaining versatility. Its size allows for confident handling, while the side exit ensures efficient wire routing. Ideal for lighting fixtures, display signage, acoustic panels, and architectural features, it combines reliability with design for both technical and aesthetic applications.
| Specifications | |
|---|---|
| For wire | Ø1.2 mmØ1.5 mm |
| Wire exit | Side exit |
| Thread | M5 |
| Finish | Nickel |
| Material | Brass |
| Package size | 100 pcs |
| Wire Diameter | Working Load Limit |
|---|---|
| Ø1.2 | 12 kg |
| Ø1.5 | 18 kg |
This table shows recommended maximum load per wire and gripper combination. For safe use, see our Weight Guidelines and Safety Information.
